The RCI-T4EV8(≤8mm2) is mainly designed for the requirements of 150℃ irradiated
cross-linked flame retardant XLPO material used in the cross section (≤8mm²) cables
for electric vehicle. This compound is manufactured using polyolefin and other
elastomer as the basic resins, with the high efficient flame-retardant, cross-linking
agent, smoke suppressant, and other additions, by the process of mixing, plasticizing, and pelleting. The products not only having excellent performance in mechanical, flame
retardant property and processing performance, but also with the feature of
environmental, high flexibility, low temperature resistant, hard to abrade and twist and
so on. The comprehensive performance of the cable made by this material meets the
150℃ temperature grade requirements of ISO 19642 and QC/T1037-2016 standards.
Product Feature Soft, high elasticity, high elongation, halogen-free and low-smoke, wear-resistant,
smooth wire surface, high environmental protection. RCI-T4EV10 is uniform particle,
conform to the requirements of the RoHS, REACH and other relevant environmental regulations.

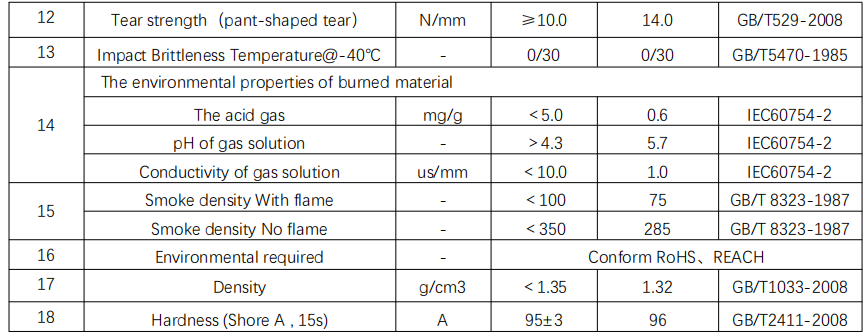

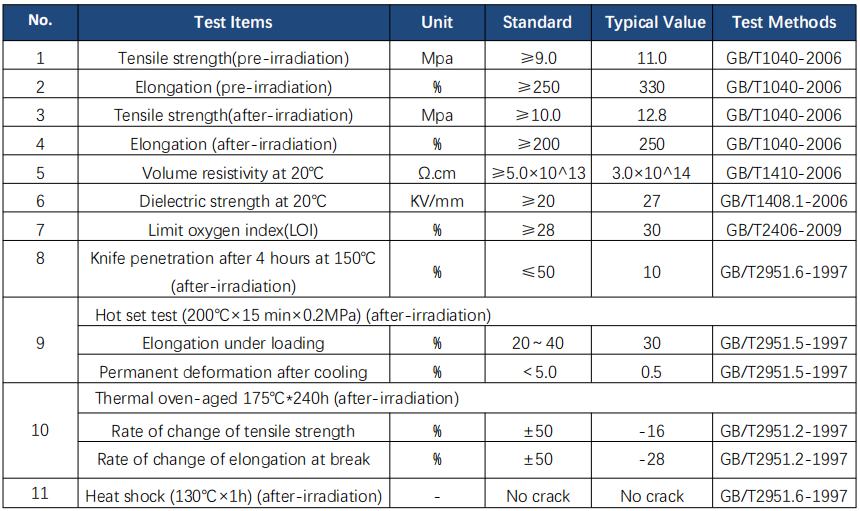

Specification Sheet
Note: The above data only provide reference for the design, not as the final product judgment basis.
Processing Conditions
Note: (1) The temperature for cable extrusion should be set at the situation of good cable surface performance; It is
recommended to use PVC screw extrusion (2) The recommended irradiation dose for MG80017S-150 is 17-18MRAD,
but the hot set shall prevail.
Packaging and Storage
Package:25kg per bag, Alumni-plastic inner, Kraft paper outside.
Transportation and storage: The product should not be exposed to the sun and rain
during transportation, and its storage environment should be kept clean, dry and
ventilated at any time.
Note: If the product in temperature≤30℃, humidity≥60% more than six months,
it should be dried at 60℃~ 70℃more than 4 hours before used.
Shelf life:12 months.
