Easily Strippable Semiconductive Insulation Screen Compound

                                                          Strippable Semiconductive Insulation Screen Compound

Item code: RCI-35SSW

Description

RCI-35SSW is a Strippable Cross-linkable Semiconductive Insulation Screen Compound (Outer semi cons)

 which is suitable for medium voltage semi-conductive MV Power Cables with rated voltages up to 35kV.

 It has good electrical performance and excellent scorch stability and surface smoothness. The value of

the material peel strength test range is 10~20 N/cm (The peel strength can be customized according

to customer needs).

Standard

IEC 60502-2, IEC 60840, BS 6622, ANSI/ICEA S-93-639, ANSI/ICEA S-94-649,

ANSI/ICEA S-97-682, ANSI/ICEA S-108-720 and AEIC CS7 and CS8.

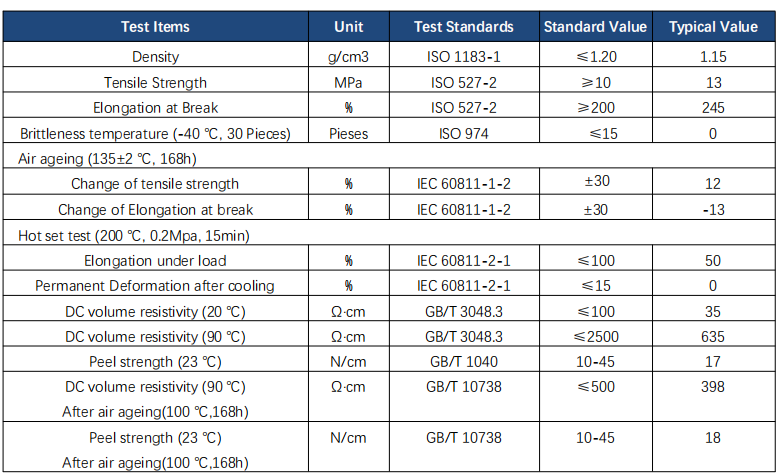

Specification Sheet

The typical values in the table were measured under conditions of sufficient cross-linking of the material. If sufficient cross-linking is not achieved,

 the performance of the material may differ

Extrusion Temperature:

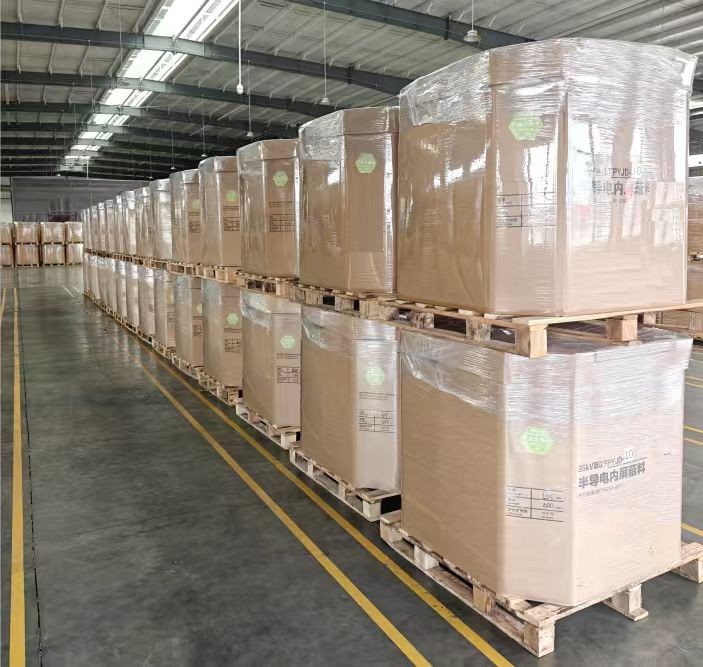

Package:   600 KG/Carton, stable corrugated case for inner&waterproof PE film for outer

Transport:keep away from the sunshine, rain and soaking during transport, as well

             as handle gently during carrying

Storage:clean, dry and ventilated warehouses

Shelf life:12 month (under above storage condition)
