Ethylene Propylene Rubber Insulation Material

                                                                 Ethylene Propylene Rubber Insulation Material

Item code: RCI-1035

Description

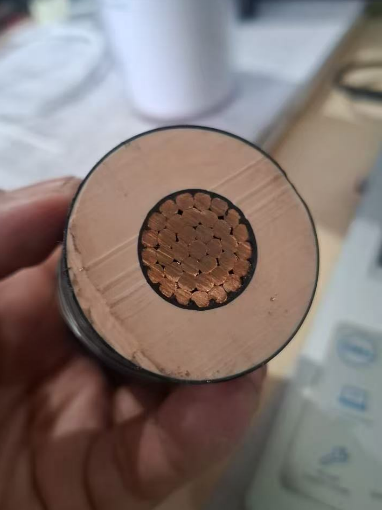

RCI-1035 is a EPR (Ethylene Propylene Rubber) for cable insulation of 35KV.

This material is not only steam curring but also with dry curing

The operating temperature is between -35℃ and 90℃.

RCI-1035 insulation will comply with the requirements as specified in the following

standards:

UL 44 (14 AWG)

ICEA S-68-516 NEMA Pub. No. WC-70, WC-71, WC-74

ANSI / ICEA S-94-649-2000 Class I, II, III

IEC Publication 60502; HEPR

IEC Publication 60840

UL 1072 for type MV-90, MV-105 (35 kV)

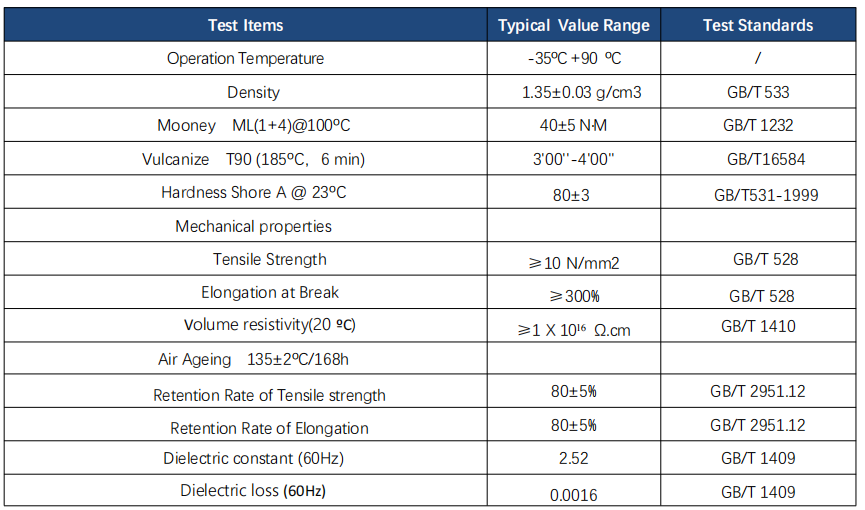

Specification Sheet

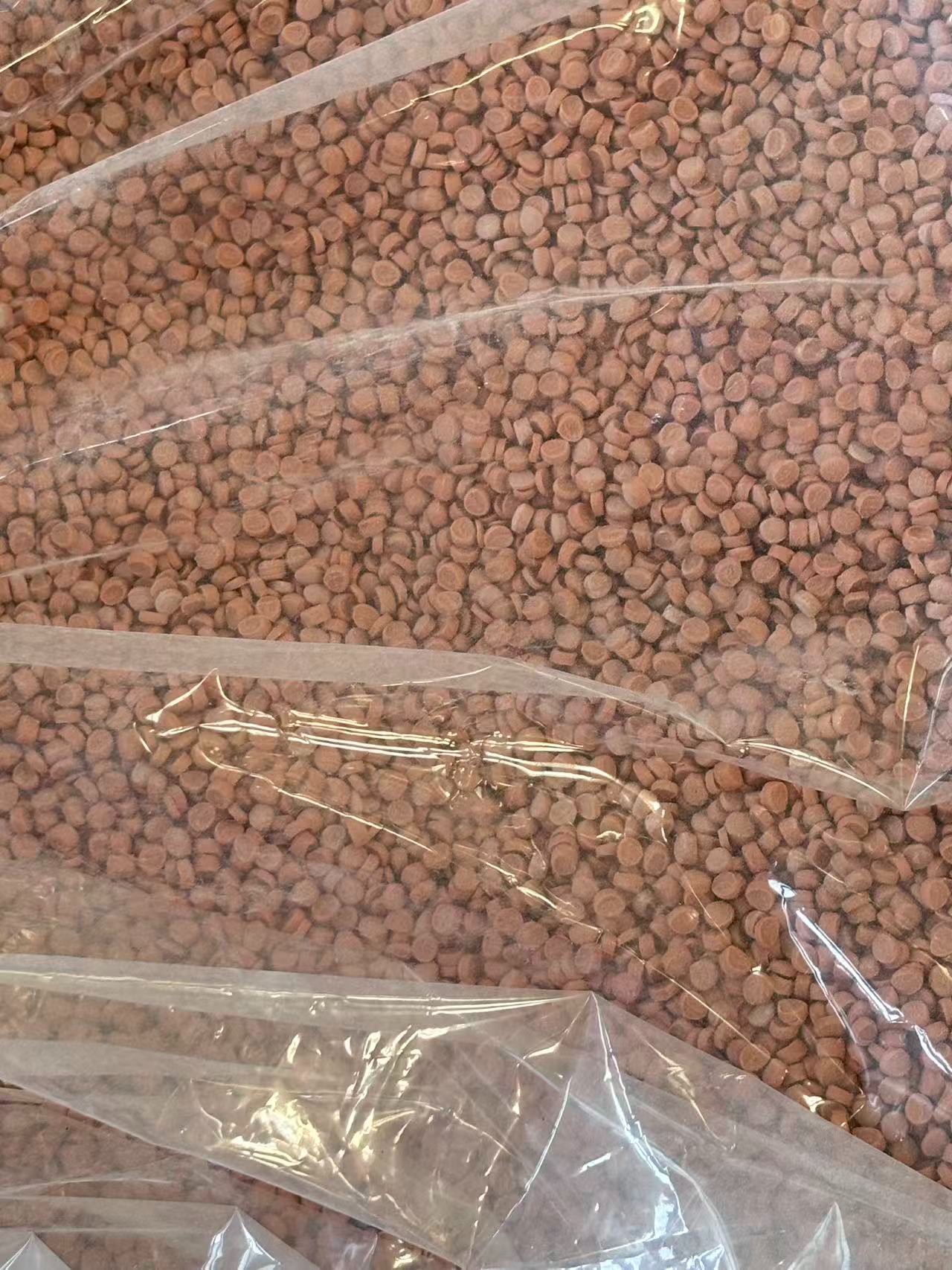

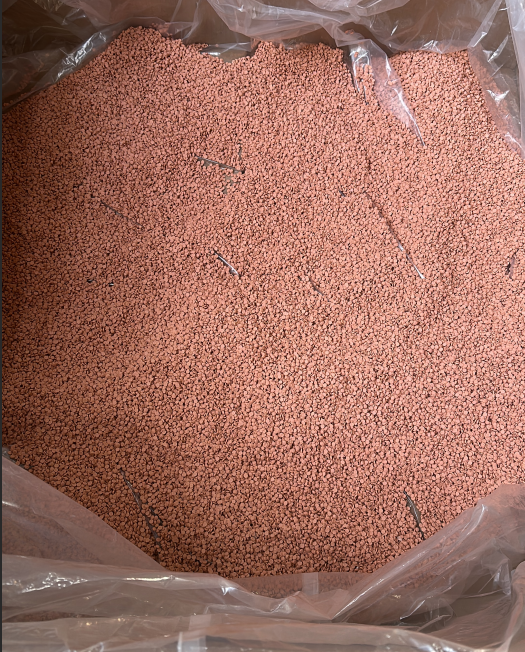

Productstorageandpackaging:

The product is stored in a light shielded, temperature below45ºC, dry environment,

andpollution-freepackaging. This product is packaged in standard cartons, with a net

weight of 500kilograms percarton. Different packaging, it can be negotiated and

determined separately.Other instructions: Different colors of materials can be provided

according to user requirements. Shelflife1year.

Remarks: The above parameters can not be used by customs, for quality control purposes.
